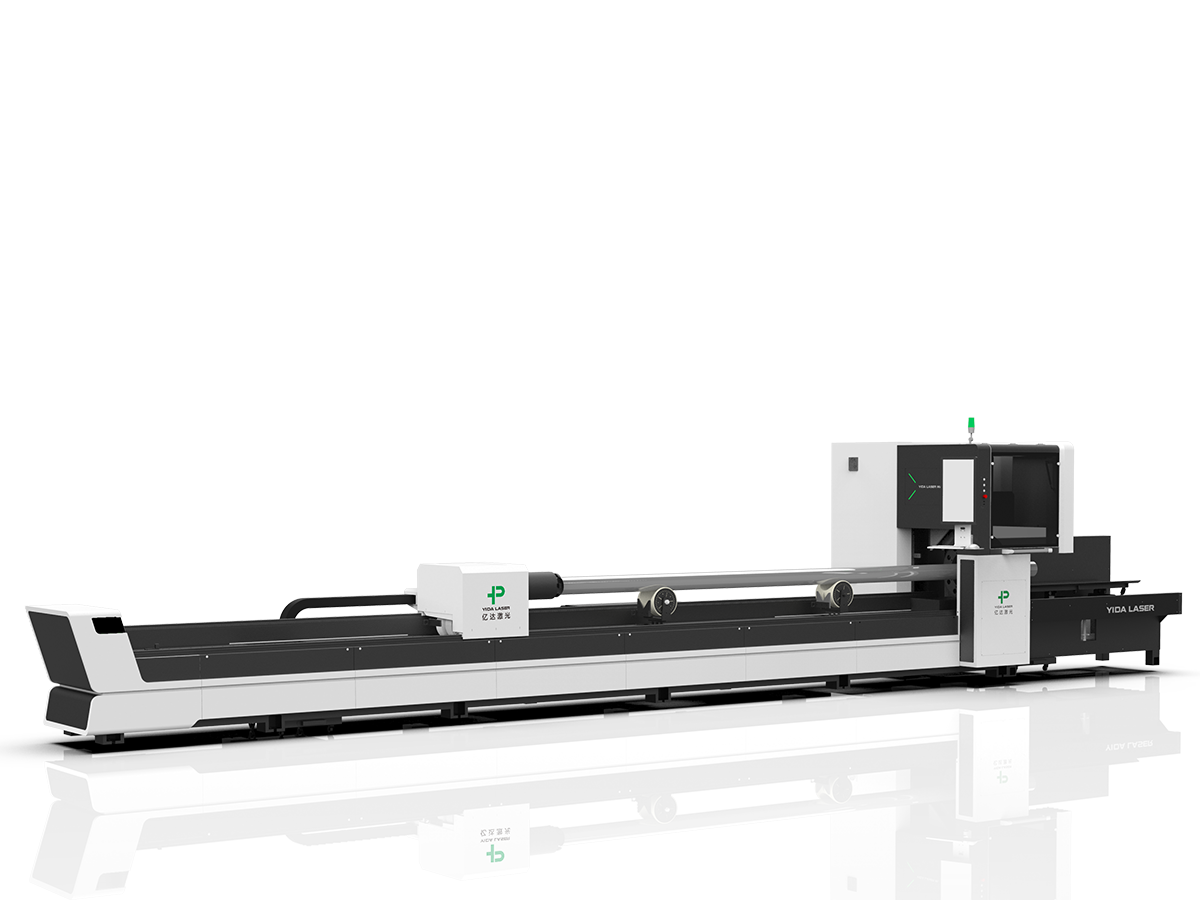

Q-Series Tuber Laser Cutting Machine / Tube Laser Cutting Machine

Q款切管机系列

Automatic feeding

L Series Three Chuck Zero Residual Material Pipe Cutting Machine 12023L

Overview

"Precision Tube Cutting for All Sizes"

High precision chuck to hold the pipe position, the chuck movement control by synchronization of servo motor and belt. A comprehensive operating system, special designed and suitable for all kinds of tube cutting.

Tube and tube profiles are widely used in machine tool industry, equipment manufacturing and furniture industry. It opened up new design possibilities especially for design engineers to use the advantages of tube laser cutting to discover more design and solutions for their products.

High precision chuck

The pipe is fixed by high precision chuck, which is achieved through the transmission mode of servo motor synchronous belt.

One key operation

One key operation, suitable for the diversified cutting of various pipes.

YIDA Laser Technology

Function&parameter List ●standard configuration， ○optional configuration， ×No configuration required		6036Q	6023Q	6016Q
Item	Subitem	6036Q	6023Q	6016Q
Basic parameter	tube cross-sectional shape	Round,square,rectangular,oval,rounded rectangular,Angle steel,channel steel and other tubes	Round,square,rectangular,oval,rounded rectangular,Angle steel,channel steel and other tubes	Round,square,rectangular,oval,rounded rectangular,Angle steel,channel steel and other tubes
	tube size range	Round tube：φ10-φ360mm Square tube：□10-□254mm Rectangulartube： 300mm≥Side length≥20mm，Circumscribed circle diameter≤360mm	Round tubeΦ10-Φ230mm Square tube□10-□160mm Rectangular tube： 170mm≥Side length≥20mm， Circumscribed circle diameter≤230mm	Round tubeΦ10-Φ160mm Square tube□10-□110mm Rectangular tube： 110mm≥Side length≥20mm， Circumscribed circle diameter≤160 mm
	Maximum machinable tube length	6500mm	6500mm	6500mm
Quality cutting	Active collision prevention	●	●	●
Quality cutting	Angle steel,channel steel cutting	●	●	●
Performance	Requirements for tubes	Diameter＜φ50mm thickness≥1mm； Diameter≥φ50mm The ratio of pipe wall to diameter of thin-walled pipe shall not be less than1/40 Wall thickness≥2.5%of Diameters of tubes wall thickness≥5mm There is no such restriction for tubes with a wall thickness≥6mm	Diameter＜φ50mm thickness≥1.2mm； Diameter≥φ50mm The ratio of pipe wall to diameter of thin-walled pipe shall not be less than1/40 Wall thickness≥2.5%of Diameters of tubes	Diameter＜φ50mm thickness≥1.2mm； Diameter≥φ50mm The ratio of pipe wall to diameter of thin-walled pipe shall not be less than1/40 Wall thickness≥2.5%of Diameters of tubes
	Maximum tube length	3000mm	4500mm	4500mm
	Shortest remaining material	80mm	70mm	70mm
	Dimensions	13500×3500×2500mm	13500×3200×2500mm	13500×3200×2500mm
	Maximum tube weight	400Kg 61 kg/m	200Kg 30Kg/m	200Kg 30Kg/m
	Overall weight	7500kg	6700kg	6200kg
Optical system	Laser source	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW
Optical system	laser head	BLT/Ray Tools/Ospri	BLT/Ray Tools/Ospri	BLT/Ray Tools/Ospri
mechanical system	Chuck drive types	Pneumatic chuck	Pneumatic chuck	Pneumatic chuck
	Standard blanking rack	●	●	●
	Linear Rails	Made in Taiwan	Made in Taiwan	Made in Taiwan
	Rack	Made in Taiwan	Made in Taiwan	Made in Taiwan
Electrical system	X-axis、Y-axis、Z-axis、A-axis Servo motor and driver	France Schneider/Japan Yaskawa	France Schneider/Japan Yaskawa	France Schneider/Japan Yaskawa
	Control system	FSCUT3000	FSCUT3000	FSCUT3000
	Proportional gas valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
	O₂Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC
	N₂Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC
	File format	●	●	●
	File format	IGS、DXF、G Code	IGS、DXF、G Code	IGS、DXF、G Code

Laser cutting can be used in different field according to application.

rail transit

Aerospace

Automobile manufacturing

Ship manufacturing

Kitchen utensils

Elevator manufacturing

Sheet metal processing

Household Electric Appliances

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.

Auto Optimize Imported Drawing
CypCut will automatically optimize the errors when import drawing, delete duplicates and invisible graphic, smooth curve and join line segments etc.
Graphical Cutting Technique Setting
Graphical design of technique setting, quick and easy to finish setting of lead line, micro-joint and kerf width compensation etc. of single or large quantity parts.
Flexible Production Mode
CypCut provides floating and workpiece coordinates for small and large quantity production.
Statistic of Production
Thorough and timely statistic of machine production to help you manage the task schedule.
Precise Edge Finding
Support capacitance and photo-electric sensing to find workpiece edge and offset sheet placement angle.
Dual-Drive Error Offset
Auto correct the dual-drive position error each time after machine axes return origin.

FSCUT7000 is EtherCAT system developed for ultrafast picosecond and femtosecond laser precision cutting. Adopting latest algorithm and EtherCAT technology, by standard communication protocol and parallel PLC, it can achieve high speed and precision laser control of 0.1um~10um interval (PSO), and highly automated production.

Technical Data

Control software	UltraCut
Bus station	CypTronic-EP PC
I/O station	HPL2720E BUS I/O terminal board
I/O station	BCL4516E BUS I/O extension board(optional)
Power supply	24V DC/5A
PSO	Support 9 laser control modes, laser on interval 0.1μm-10μm can be adjusted
Motor control	Support up to 32 EtherCAT servo axes control in same time
Extension	Support up to 32 EtherCAT I/O stations
Acceleration	Maximum control acceleration 5G
Precision	Theroical control precision ±1um
Work environment	Temperature: 0~60℃
Work environment	Humidity: 10%~90%RH(no condensation)

Benefits

Function Features	Support laser position synchronized output (PSO function), laser output interval 0.1-10μm.
	Support 9 laser control modes, and compatible with various ultrafast laser brands.
	Communicate with laser by RS232 and Ethernet for parameter and status access.
	Support technique of transition line, lead line, Fly Cut, speed turning point, speed adjust in curve position.
	Support dual-Y structure production.
	Support to edit and execute parallel PLC process.
	Compatible with ModbusTCP, ADS and other standard protocols to guarantee online production.
	Provide optional vision positioning module to locate production by circle and cross mark.
Control performance	Communication: RTOS real time core, signal cycle 1ms.
	Precision: control precision 1μm.
	Support compensate pitch error from interferometer measure data, also support offset mechanic orthogonality.

Application

Applied in ultrafast picosecond and femosecond laser precision cutting. Widely used in fragile material cutting like glass, ceramic, display screen, semiconductor and photovoltaic materials etc.

This product specification may differ from the description subjected to countries rules and regulation. We reserve the right to amend according to technology, equipment model, price and range of accessories. Please contact your local agent to find out more about our products.
