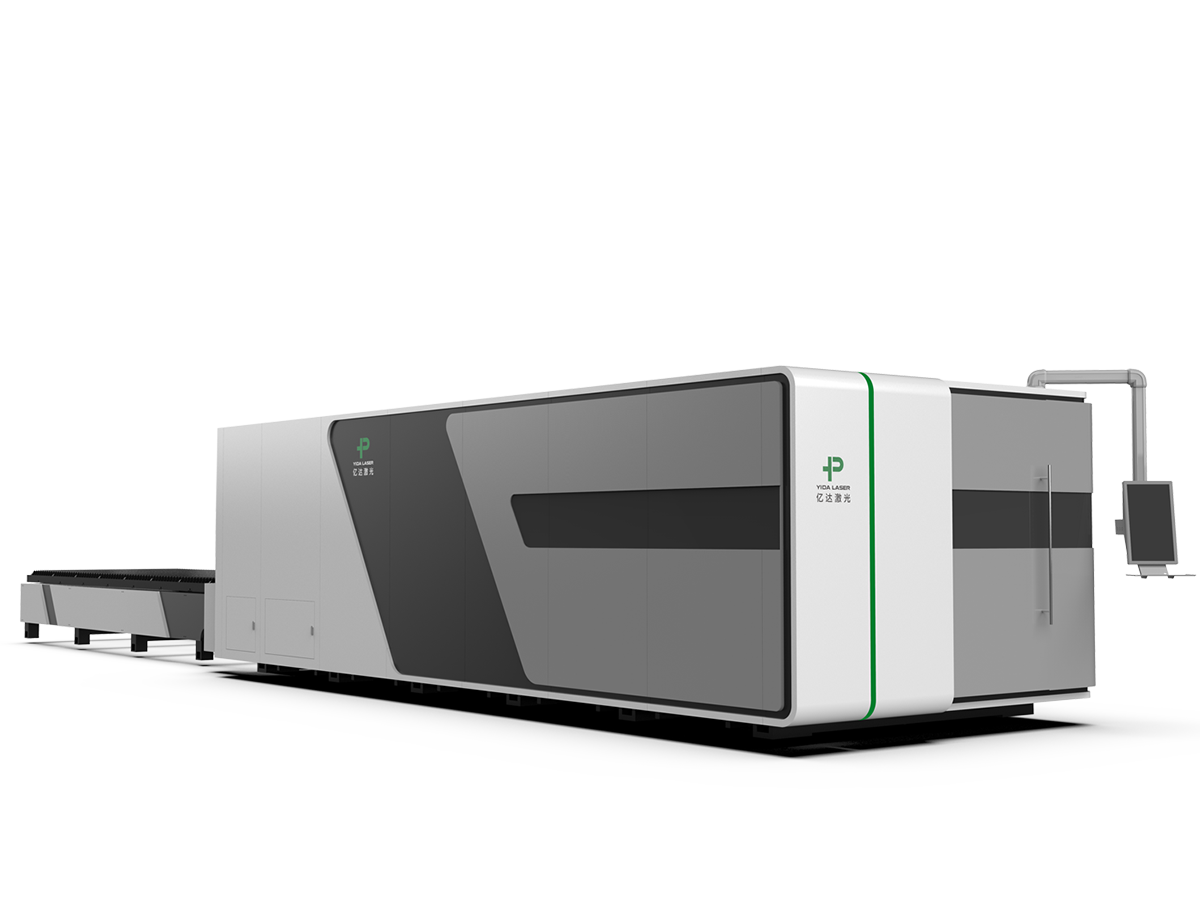

G-Series Full Enclosed Body With Exchange Table / 2D Laser Cutting Machine

G款大包围双平台

Automatic collision prevention

The tilting finished parts can be detected in advance, to avoid laser head damage due to collision and ensure production to be run smoothly.

For thin plates cutting, plate vibrating can be effectively controlled

To eliminate machine and metal sheet ‘s vibration during cutting and ensure the quality cutting.

Machine Configuration

Cast iron bed

Integral casting, the bed is more stable and reliable, and the machining precision is higher.

Cast Aluminum Beam

High precision, faster speed, high efficiency, good integrity, high rigidity, guarantee parts process quality

Overview

"Solid and Rigid, High performance."

Professional laser cutting software, Special design Fully-enclosed body with exchange platform, Full aspects monitoring system to ensure safe and stable during laser cutting process, high-rigid and solid cast iron body, minimum structure deformation, super low vibration, precise and high accuracy.

Full covered machine body with twin exchange table

Fully covered by double platform alternately cutting, to improve work efficiency, to reduce cutting splashing residue and to ensure the safety of operators.

Gantry structure design

Gantry structure design, linear drive with rack and pinion, Stable structural, high rigidity, high speed travel.

Casting bed body

Cast bed body, overall cast aluminum beam, stable structure.

YIDA Laser Technology

Function&parameter List ●standard configuration， ○optional configuration， ×No configuration required			8025G	6025G	4020G	3015G
Item		Subitem	8025G	6025G	4020G	3015G
Basic parameter		Working area	8100mm*2500mm	6100mm*2500mm	4000mm*2000mm	3050mm*1530mm
Basic parameter		Max.linkage speed	160m/min	160m/min	160m/min	140m/min
		Automatic adjustment of cutting gas pressure	6KW below：O₂ 6KW and above：O₂、N₂、air	6KW below：O₂ 6KW and above：O₂、N₂、air	6KW below：O₂ 6KW and above：O₂、N₂、air	6KW below：O₂ 6KW and above：O₂、N₂、air
		Auto-focus of laser head	●	●	●	●
Performance		Max.acceleration	2G	2G	2G	2G
		Table load bearing	6200kg（1-4kw） 8000kg（≥6kw）	4750kg（1-4kw） 6300kg（≥6kw）	3550kg（1-4kw） 4700kg（≥6kw）	1800kg（1-4kw） 2500kg（≥6kw）
		Machine overall dimensions	1970042152400mm	1530045002400mm	1200037002300mm	995030502300mm
		Overall weight	22500kg	19500kg	11000kg	8300kg
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools 12KW and above：Germany Precitec/BLT	12KW and below：BLT/Ray Tools 12KW and above：Germany Precitec/BLT	12KW and below：BLT/Ray Tools 13KW and above：Germany Precitec/BLT	12KW and below：BLT/Ray Tools 14KW and above：Germany Precitec/BLT
	Optical system	Laser source	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW	MAX/IPG/Raycus/GW
	mechanical system	Bed	○Cast iron bed ○welded bed	○Cast iron bed ○welded bed	○Cast iron bed ○welded bed	○Cast iron bed ○welded bed
		Cast aluminum cantilever	●	●	●	●
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Protective Enclosure	●	●	●	●
		Enhanced-partition Dust Removal	●	●	●	●
	Electrical system	Control system	FSCUT2000S 8kw：FSCUT8000	FSCUT2000S 8kw：FSCUT8000	FSCUT2000S 8kw：FSCUT8000	FSCUT2000S 8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O₂Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N₂Cutting gas control valve	4KW and below：Japan SMC 6KW and above：Germany AVENTICS	4KW and below：Japan SMC 6KW and above：Germany AVENTICS	4KW and below：Japan SMC 6KW and above：Germany AVENTICS	4KW and below：Japan SMC 6KW and above：Germany AVENTICS

Laser cutting can be used in different field according to application.

rail transit

Aerospace

Automobile manufacturing

Ship manufacturing

Kitchen utensils

Elevator manufacturing

Sheet metal processing

Household Electric Appliances

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.

Auto Optimize Imported Drawing
CypCut will automatically optimize the errors when import drawing, delete duplicates and invisible graphic, smooth curve and join line segments etc.
Graphical Cutting Technique Setting
Graphical design of technique setting, quick and easy to finish setting of lead line, micro-joint and kerf width compensation etc. of single or large quantity parts.
Flexible Production Mode
CypCut provides floating and workpiece coordinates for small and large quantity production.
Statistic of Production
Thorough and timely statistic of machine production to help you manage the task schedule.
Precise Edge Finding
Support capacitance and photo-electric sensing to find workpiece edge and offset sheet placement angle.
Dual-Drive Error Offset
Auto correct the dual-drive position error each time after machine axes return origin.

FSCUT7000 is EtherCAT system developed for ultrafast picosecond and femtosecond laser precision cutting. Adopting latest algorithm and EtherCAT technology, by standard communication protocol and parallel PLC, it can achieve high speed and precision laser control of 0.1um~10um interval (PSO), and highly automated production.

Technical Data

Control software	UltraCut
Bus station	CypTronic-EP PC
I/O station	HPL2720E BUS I/O terminal board
I/O station	BCL4516E BUS I/O extension board(optional)
Power supply	24V DC/5A
PSO	Support 9 laser control modes, laser on interval 0.1μm-10μm can be adjusted
Motor control	Support up to 32 EtherCAT servo axes control in same time
Extension	Support up to 32 EtherCAT I/O stations
Acceleration	Maximum control acceleration 5G
Precision	Theroical control precision ±1um
Work environment	Temperature: 0~60℃
Work environment	Humidity: 10%~90%RH(no condensation)

Benefits

Function Features	Support laser position synchronized output (PSO function), laser output interval 0.1-10μm.
	Support 9 laser control modes, and compatible with various ultrafast laser brands.
	Communicate with laser by RS232 and Ethernet for parameter and status access.
	Support technique of transition line, lead line, Fly Cut, speed turning point, speed adjust in curve position.
	Support dual-Y structure production.
	Support to edit and execute parallel PLC process.
	Compatible with ModbusTCP, ADS and other standard protocols to guarantee online production.
	Provide optional vision positioning module to locate production by circle and cross mark.
Control performance	Communication: RTOS real time core, signal cycle 1ms.
	Precision: control precision 1μm.
	Support compensate pitch error from interferometer measure data, also support offset mechanic orthogonality.

Application

Applied in ultrafast picosecond and femosecond laser precision cutting. Widely used in fragile material cutting like glass, ceramic, display screen, semiconductor and photovoltaic materials etc.

This product specification may differ from the description subjected to countries rules and regulation. We reserve the right to amend according to technology, equipment model, price and range of accessories. Please contact your local agent to find out more about our products.
